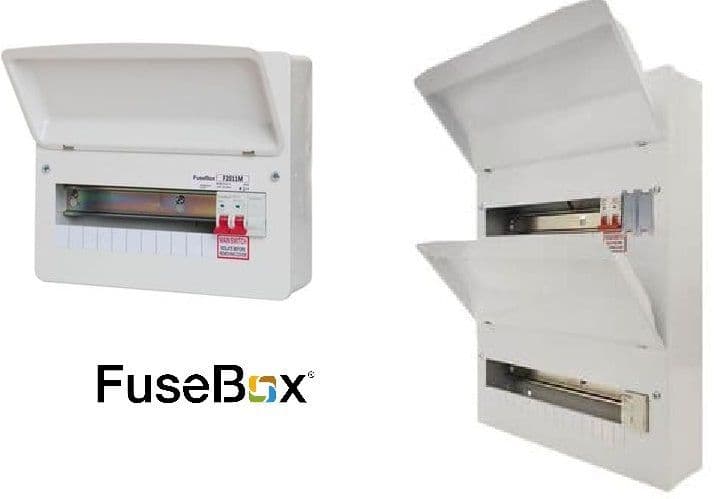

Fusebox Consumer Unit 4-30 Way – 100A Main Switch

• 18th Edition consumer unit compliant to BS EN 61439-3.
• Fully compliant with the new 18th edition wiring regulations.
• Can be fitted with a Fusebox T2 surge protection device.
• Extra installation height makes this an ideal RCBO consumer unit.
• Earth & neutral terminals at top.
• Captive screws on front cover.
• Easy to remove round knockouts.
• Busbar cover.
• Comes with label pack and grommet strip.
• Powder coated finish to RAL 9001.

F2004M 4 Useable Ways | 6 Modules

• Width: 162mm (A)
• Height: 255mm
• Depth: 110mm

F2007M 7 Useable Ways | 10 Modules

• Width: 234mm
• Height: 255mm
• Depth: 110mm

F2011M 11 Ways | 14 Modules

• Width: 306mm
• Height: 255mm
• Depth: 110mm

F2015M 15 Useable Ways | 18 Modules

• Width: 378mm
• Height: 255mm
• Depth: 110mm
