WAGO Lever connectors 2,3 and 5 way

WAGO Lever connectors 2,3 and 5 way

WAGO Lever connectors 2,3 and 5 way

£0.29 £0.24 (ex. VAT)
WAGO Lever connectors 2,3 and 5 way
You Will Earn 0 points with this purchase
Facebook
Proven and perfected: WAGO’s 221 Series COMPACT Splicing Connectors for all wire types set new standards. This new series is 40 % smaller and even more user-friendly than its successful predecessor, the 222 Series. WAGO’s new “superstars” for electrical installations allow solid, stranded and fine-stranded wires to be connected faster, in less space and more reliably: This is not just made possible by their compact design, which is 40 % smaller than the well-established 222 Series, but also by their transparent housing, easier handling and two test ports.
Splicing connectors, which considerably simplify work in practice. Due to their extremely small dimensions, WAGO’s COMPACT Splicing Connectors are ideal for space-restricted applications. Installation is made much easier, while providing additional freedom for future expansions. The transparent housing is another highlight: Now, you can clearly see if the wires are connected properly and stripped to the correct length. Furthermore, two easily accessible test ports, one in the conductor entry direction and one opposite of this, simplify testing — even when installed.
WAGO’s new splicing connectors are also easier to use: The operating levers can now be opened and closed using noticeably less force. Lateral hollowed-out grips provide a firm hold on the 221 Series connectors in any situation.
Compact Splicing Connectors – All Conductor Types

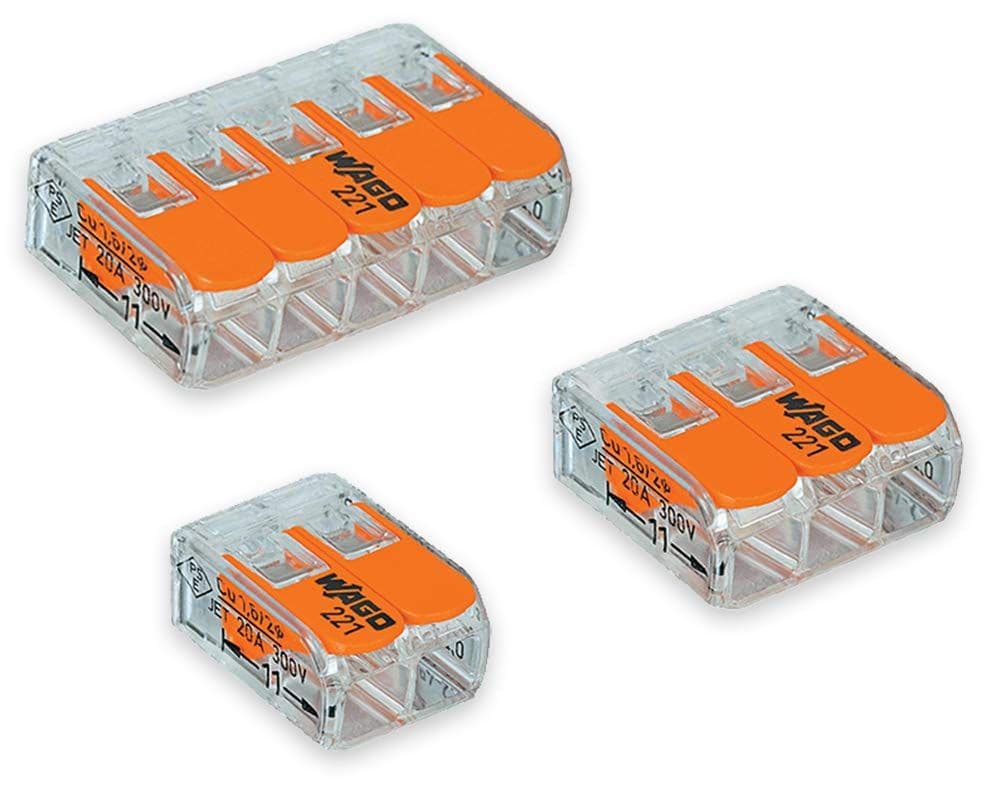

The 2-, 3- and 5-wire connectors accommodate fine-stranded wires from 0.14 to 4 mm², as well as solid and stranded wires from 0.2 to 4 mm² (24–12 AWG). They are therefore ideally suited to connect different conductor sizes and types to each other. Tinned current bars ensure a permanent, gas-tight and secure wire connection.
Ratings up to 32 A/450 V and 105 °C maximum continuous operating temperature allow the 221 Series Splicing Connectors to be used at ambient temperatures up to 85 °C (T85), making them ideal for small and large loads. Furthermore, approvals like ENEC or UL allow them to be used in worldwide applications.
Your benefits with the splicing connectors
Up to 40 % less space required than for the original WAGO 222

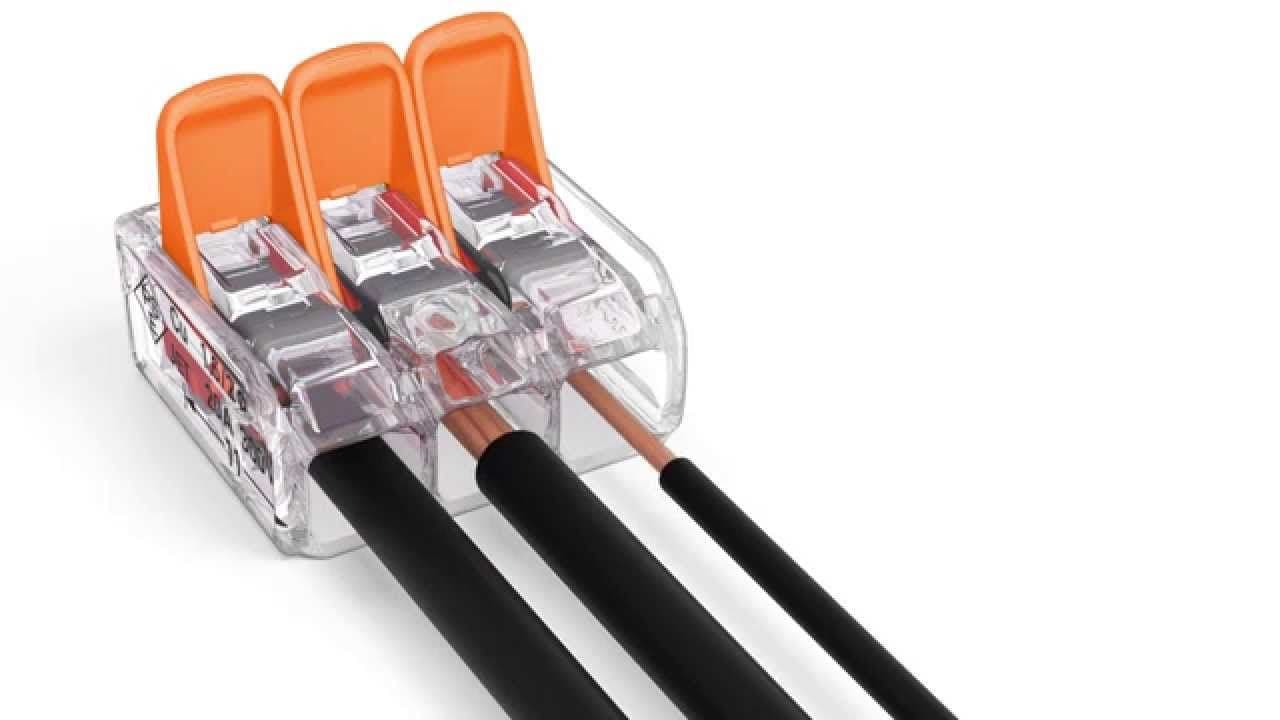

Transparent housing for visual inspection shows that the wire is inserted properly and stripped to the correct length
Easy termination via reduced operating force
Any combination of wire types and sizes from 0.14 to 4 mm² (24–12 AWG) is possible
Two test slots for all standard test probes
  • COMPACT Splicing Connectors; 2-conductor connector; with operating levers; Max.ambient operating temp. 85 °C
  • Max Cable size : 4mm
  • Number of connection points : 3
  • Connectable conductor materials : Copper
  • Rated Voltage 450V
  • Current Rating : 32A
  • Item no : 221-413
  • EAN : 4050821808442
  • Content : 1 piece
  • Order quantity : 1
  • Solid conductor : 0.2 … 4 mm² / 24 … 12 AWG
  • Stranded conductor : 0.2 … 4 mm² / 24 … 12 AWG
  • Fine-stranded conductor : 0.14 … 4 mm² / 24 … 12 AWG
  • Strip length : 11 mm / 0.43 Inch
  • Width : 13.1 mm / 0.516 Inch
  • Height : 8.3 mm / 0.327 Inch
  • Depth : 18.6 mm / 0.732 Inch
